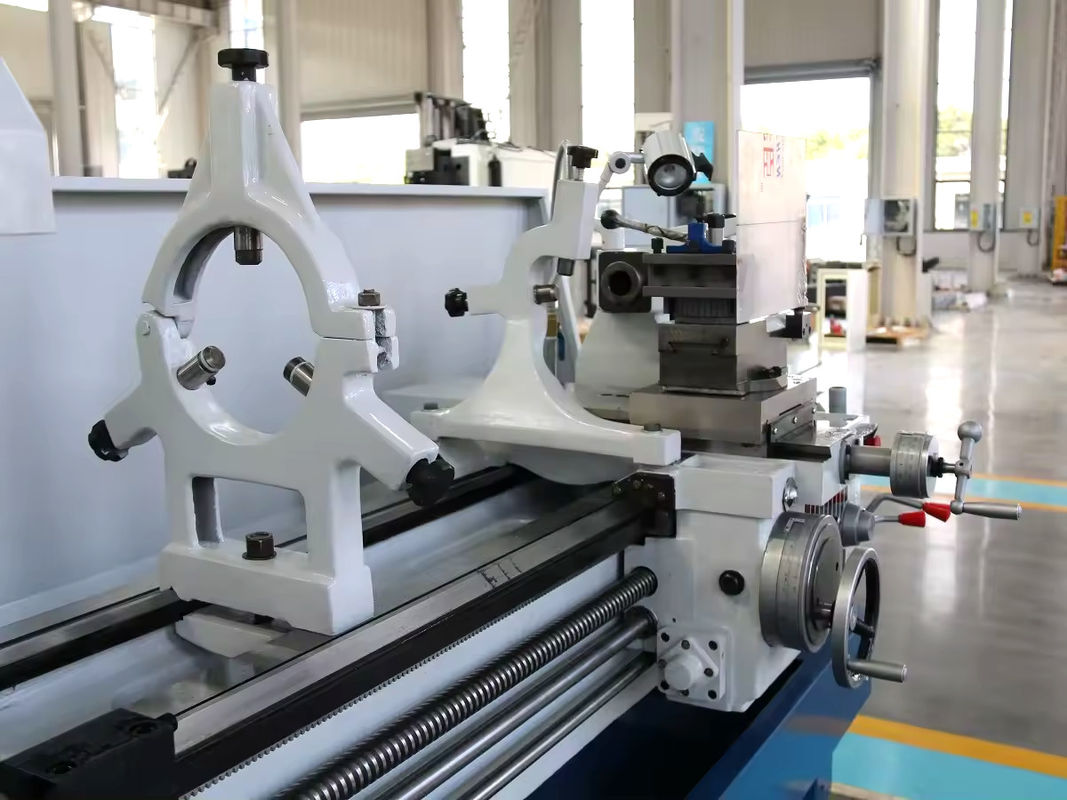

SMTCL Manual Lathe Machine CA6161 Conventional Metal Lathe 4000mm Hole Through Spindle 80mm

Product Description:

The CA series common lathe is a type of standard lathe commonly used for processing medium-sized workpieces. It is a popular lathe model known for its stability, simple structure, easy operation, and maintenance.

The CA series common lathe typically consists of the bed, spindle, feed system, and tool holder. The bed is the main component that supports the workpiece and cutting tools, while the spindle is responsible for securing and rotating the workpiece. The feed system controls the movement of the cutting tool on the workpiece, and the tool holder is used for clamping and operating the cutting tools.

The CA series common lathe is suitable for machining various types of metal workpieces, such as shafts, threads, and gears. It can perform turning, boring, drilling, threading, and other machining operations. It is widely used in manufacturing and mechanical processing industries as one of the commonly used machine tools.

The CA series common lathe finds extensive applications in industrial production, catering to both single-piece machining and mass production requirements. It offers flexibility and versatility, making it suitable for beginners and small to medium-sized enterprises with various machining needs.

Product Features:

1,This series lathe machine is suitable for internal and extermnal turning, tapering, and other rotating faces, metric, moduleand inch threads, as well as drilling and pull oil slot.
2,Width of bed is bigger than normal lathe machine, with high hardness on guideway, the guideway is throughhigh-frequency quenching, wear-resisting.
3,This machine is easy to operate, with rapid device for carriage, design with single hand wheel to operate.
4,The strength and rigidity of machine is higher than normal lathe machine, high effciency, suitable for heavy dutymachining.

Product Details:

Product Paramenters:

Specifications		CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C	CA6166 CA6266 CA6166B CA6266B CA6166C CA6266C
Max.Swing over bed		610mm	660mm
Max.Swing over carriage		370mm	400mm
Max.Swing in gap		830mm	880mm
Effective gap length		210mm	210mm
Max.Length of work piece		750/1000/1500/2000/2500/3000/4000mm
Width of bed		400mm
Section of turning tool		25×25mm
Spindle	Spindle speed	16-1400rpm(24 steps)
	Hole through spindle	52mm/80mm/105mm
	Spindle taper	moseNO.6(MT6)
Feed	Number of feeds	64kinds
	Range of metric threads(kinds)	(1-192mm)44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	0.25-48(module 39kinds)
	Range of pitch threads(kinds)	1-96DP(37 kinds)
Tailstock	Max.Tailstock spindle travel	150mm
	Tailstock spindle diameter	75mm
	Taper of tail stock spindle center hole	moseNO.5(MT5)
Main motor		7.5K(10HP)



OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

Exhibition:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
