Product Description:
Product Features:
1,Rocker drill guide rail adopts quenching treatment and manual grinding to increase the accuracy and service life of the machine tool;
2,The body is equipped with two-speed motor, stable use, long service life of each part;
3,Super audio hardening gear, high hardness, low noise, gear using CNC worm precision grinding;
4,Hydraulic lock, hydraulic speed change, hydraulic electric lock, hydraulic 16 speed change;
5,Radial drilling machine spindle adopts high-density material, high rigidity, tight clamping drill bit, high drilling accuracy;
6,Resin sand castings, castings clear outline, high dimensional accuracy, after four heat treatment process, by audio hardening, high rigidity, high strength.
|
SPECIFICATIONS
|
Unit
|
Z3050×16D
|
|
Maximum hole diameter
|
mm
|
50
|
|
Spindle axis to column distance bus
|
mm
|
315-1450
|
|
Headstock horizontal movement distance
|
mm
|
1150
|
|
Spindle nose to table distance
|
mm
|
650-1330
|
|
Column diameter
|
mm
|
280
|
|
Table size
|
mm
|
620×370×300
|
|
Rocker rotation angle
|
°
|
360°
|
|
Lifting distance of rocker arm
|
mm
|
680
|
|
Spindle taper
|
|
5#
|
|
Spindle speed range
|
r/mm
|
78,135,240,350,590,1100
|
|
Spindle speeds
|
|
6
|
|

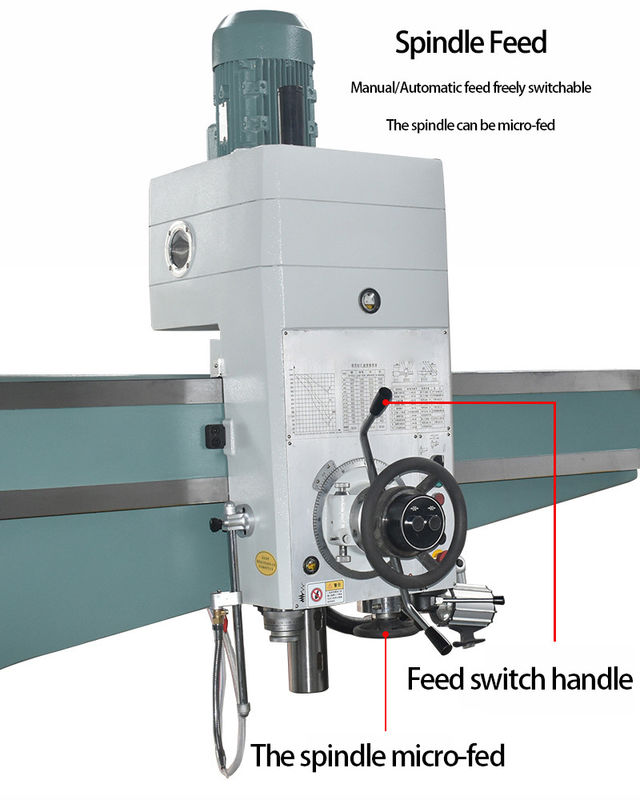

Spindle Feed range
|
mm/r
|
0.10-0.56
|
|
Spindle feed rate series
|
|
6 step
|
|
Spindle travel
|
mm
|
280
|
|
The maximum permissible spindle torque
|
N.m
|
500
|
|
The maximum permissible spindle feed force
|
N
|
15000
|
|
Spindle motor power
|
Kw
|
4
|
|
Rocker lift motor power
|
Kw
|
1.5
|
|
Machine weight
|
Kg
|
2500
|
|
Overall dimensions
|
mm
|
2170×950×2450
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
