Place of Origin:
China
Brand Name:
smtcl symg
Certification:
CE ISO
Model Number:
CA6150A/CA6250A
Video
Video

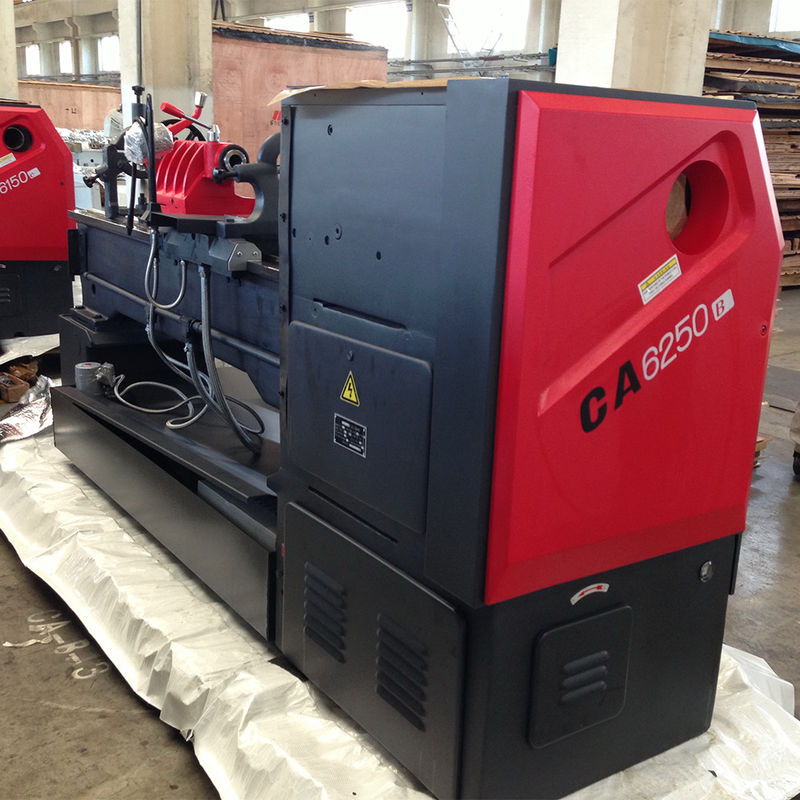

CA6150A/CA6250A Conventional Manual Lathe Machine Tool Price China Universal Lathe Tool Manufacturer Supplier
| Item | Unit | CA6140A/ CA6240A | CA6150A/ CA6250A | CA6161A/ CA6261A | ||||
| Max. swing dia over bed | mm | 400 | 500 | 610 | ||||
| Max. swing dia over carriage | mm | 210 | 300 | 370 | ||||
| Max swing dia over saddle/ Width of saddle | mm | 630*210 | 720*210 | 830*210 | ||||
| Max workpiece length | mm | 750/650;1000/900;1500/1400;2000/1900 | ||||||
| Width of bed / hardness mm | mm | 400, Rc52 | 400, Rc52 | 400, Rc52 | ||||
| Section of turning tools | mm | 25x25 | 25x25 | 25x25 | ||||
| Spindle speed range | r/min | 11-1600(24) | 11-1600(24) | 11-1600(24) | ||||
| Spindle bore and nose | mm | 52 A6 | 52 A6 | 52 A6 | ||||
| Taper of spindle nose | Morse 6# | Morse 6# | Morse 6# | |||||
| Range of longitudinal feed | Standard | mm/r | 0.08-1.59 | 0.08-1.59 | 0.08-1.59 | |||
| small feed | mm/r | 0.028-0.054 | 0.028-0.054 | 0.028-0.054 | ||||
| enlarge feed | mm/r | 1.71-6.33 | 1.71-6.33 | 1.71-6.33 | ||||
| Rang of cross feed | Standard | mm/r | 0.04-0.79 | 0.04-0.79 | 0.04-0.79 | |||
| small feed | mm/r | 0.014-0.027 | 0.014-0.027 | 0.014-0.027 | ||||
| enlarge feed | mm/r | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | ||||
| Travel of cross slide / top turret travel | mm | 320/140 | 320/140 | 420/140 | ||||
| Swiveling angle of compound slide | degree | ±90 | ±90 | ±90 | ||||
| Rapid travel carriage | m/min | 4 | 4 | 4 | ||||
| Rapid travel of cross slide | m/min | 2 | 2 | 2 | ||||
| Travel of tailstock spindle | mm | 150 | 150 | 150 | ||||
| Diameter of tailstock spindle | mm | 75 | 75 | 75 | ||||
| Taper of tailstock spindle | Morse 5# | Morse 5# | Morse 5# | |||||
| Metric thread(kinds) | mm | 1-192(44) | 1-192(44) | |||||
| Whitwhorth thread(kinds) | t.p.i | 2-24(21) | 2-24(21) | 2260 | ||||
| Modular thread(kind) | mm | 0.25-48(39) | 0.25-48(39) | 2437 | ||||
| Diameter Pitch(kinds) | D.P | 1-96(37) | 1-96(37) | 2787 | ||||
| Main motor | kW | 7.5 | 7.5 | 7.5 | ||||
| New weight of machine | 750mm | kg | 1990 | |||||
| 1000mm | kg | 2070 | 2140 | 2260 | ||||
| 1500mm | kg | 2220 | 2290 | 2437 | ||||
| 2000mm | kg | 2570 | 2640 | 2787 | ||||
| Overall dimensions(L×W×H) | 750mm | mm | 2418*1000*1267 | |||||
| 1000mm | mm | 2668*1000*1267 | 2668*1037*1312 | 2668*1130*1367 | ||||
| 1500mm | mm | 3168*1000*1267 | 3168*1037*1312 | 3168*1130*1367 | ||||
| 2000mm | mm | 3668*1000*1267 | 3668*1037*1312 | 3668*1130*1367 |
||||
CA Conventional Manual Lathe
