CNC Milling Center VMC850Q Vertical Machining Center FANUC Controller CNC VMC Machine

Product Description:

CNC Milling Center VMC850Q Vertical Machining Center FANUC Controller CNC VMC Machine

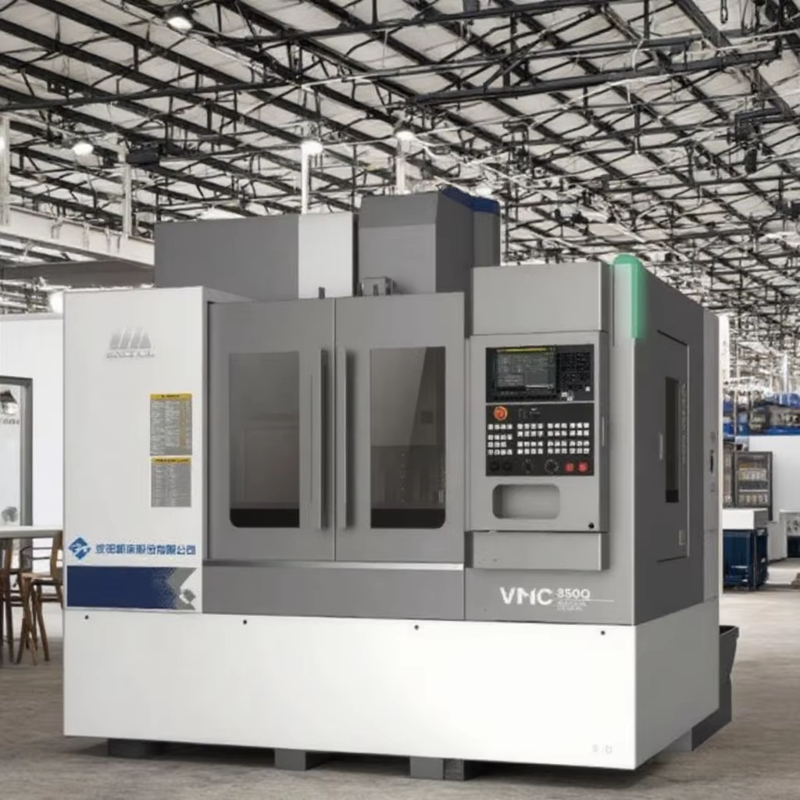

VMC850Q is a high - performance vertical machining center. Its low - center - of - gravity, large - span bed design significantly enhances machine rigidity. The classic "herringbone" column, with a cross - shaped external skeleton rib on the side, boosts torsional resistance. The spindle box, featuring a unique thermally symmetric structure, effectively counteracts thermal deformation. With a worktable size of 1000x500mm, it can handle a maximum workpiece weight of 600 kg. Equipped with a 7.5/11 kw spindle motor, it reaches up to 10000 rpm. The 24 - position tool magazine, along with a rapid tool - change time of 2.5 seconds, ensures high - efficiency operations. The 3 - axis rapid traverse speed is 48m/min. It's perfect for milling, drilling, boring, and tapping in various industries like automotive and general machinery, guaranteeing precision and productivity.

Product Features:

1,High rigidity and high stability design

♦ High strength integral casting bed

♦ Three-axis P-class roller guide

♦ Long span herringbone column

Product Paramenters:

Item		Unit	VMC850Q	VMC1000Q	VMC1100Q
Capacity	X axis travel	mm	850	1000	1100
	Y axis travel	mm	500	500	620
	Z axis travel	mm	540	540	600
	Spindle nose to table surface	mm	120-660	120-660	120-720
	Spindle nose to column surface	mm	640	640	743
Worktable	Table size (L×W)	mm	1000×500	1200×500	1300×610
	Max load on the table	kg	600	600	1000
	T-slot size	mm	18×5	18×5	18×5
Spindle	Spindle speed	rpm	10000	10000	10000
	Spindle taper/spindle shank	mm	7/24 taper	7/24 taper	7/24 taper
			BT40	BT40	BT40
	Spindle motor	kw	7.5/11	7.5/11	11/15
	Maximum output torque	N.m	35.8/70	35.8/70	52.5/95.5
	Spindle drive type		Synchronous tooth belt
Tools	Tool holder model		MAS 403 BT40
	Pull stud model		MAS 403 P40T-I
Feed rate	X,Y,Z rapid traverse	m/min	48/48/48
	3 axes moter power(X/Y/Z)	kW	1.8/1.8/3	1.8/1.8/3	3/3/3
	3 axes moter torque(X/Y/Z)	N·m	11/11/20	11/11/20	20/20/20
	Max cutting feed rate	mm/min	1-20000

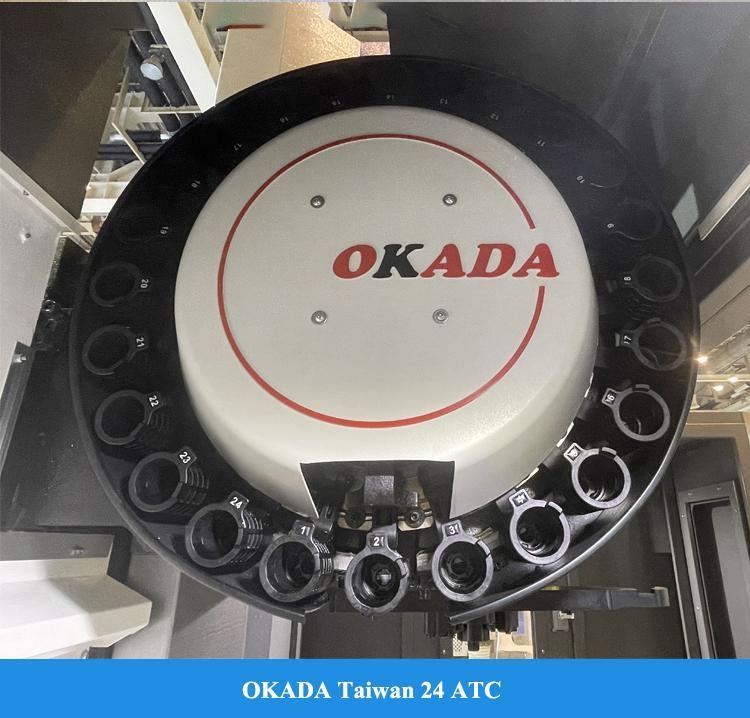

A.T.C	Type	pc	ATC with robot arm
	Mode		Nearest tool selection in bi-direction
	Capacity	Pcs	24
	Max tool length	mm	300
	Max tool weight	kg	7
	Max too disk dia.-Full	mm	80
	Max too disk dia.-Adjacent	mm	150
	Tool change time(T-T)	sec	2.5
The height between table to ground		mm	900	900	950
Others	Overall dimensions (L×WxH)	mm	2400×2975×2840 (Exclude chip conveyor)	2700×2975×2840 (Exclude chip conveyor)	2940×3450×3050 (Exclude chip conveyor)
	Net machine weight	kg	5100	5400	6200
	Total power requirment	KVA	18	18	25

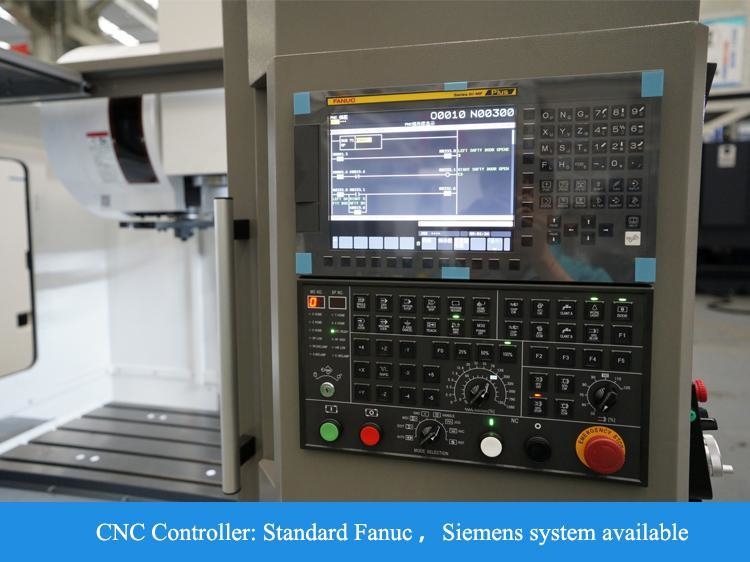

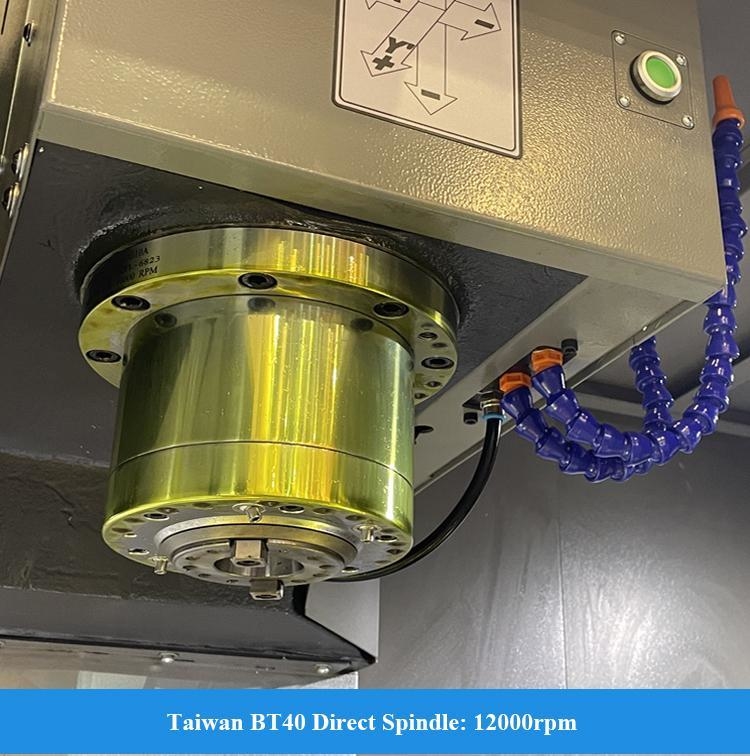

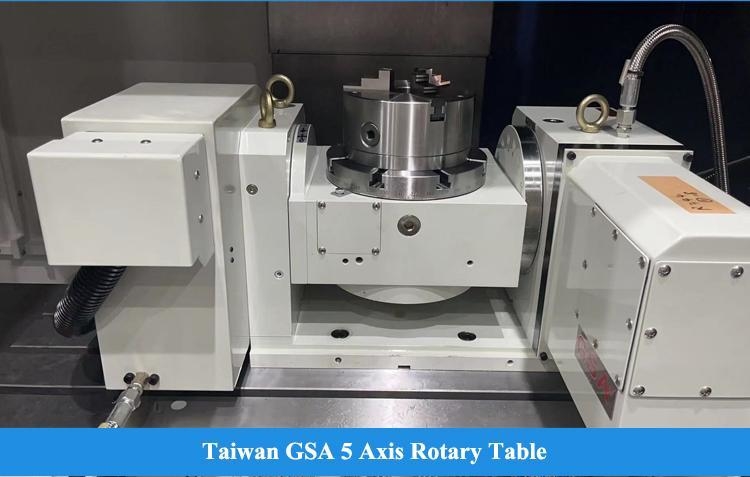

Standard configuration: 1. FANUC OI-MF TYPE(5)β control system 2. 10000 RPM spindle , belt connected 3. 24 disc manipulator tool magazine 4. Water tank + bed flushing chip 5. Clean air gun, working light, warning light			Selective configuration: 1. Fanuc Oi-MF TAPE(l)β system 2. Fanuc Oi-MF TAPE(l)α system 3. Siemens 828D CNC system 4. Direct connection 12000 RPM mechanical spindle 5. 16000 RPM, 24000 motorized spindle 6. 4th axis turntable 7. Cooling inside 2MPa, 3MPa,5MPa,7MPa 8. Oil-water separator 9. Chain chip remover 10. Clean water gun 11. Tool and workpiece inspection 12. Automatic door 13. Safety door lock 14.Electric cabinet and air conditioning
